UHMWPE Rope – High Strength Lightweight Synthetic Rope Manufacturer
Introduction
NCROPE UHMWPE rope is a high-performance synthetic rope manufactured from Ultra High Molecular Weight Polyethylene (UHMWPE) fibers, offering exceptional tensile strength, extremely low weight, and outstanding durability. Compared with traditional steel wire rope, UHMWPE rope delivers superior safety, easier handling, and longer service life in demanding applications.
As a professional UHMWPE rope manufacturer and supplier, NCROPE provides reliable rope solutions for traction, winch, marine, lifting, power transmission, and industrial applications worldwide.
What Is UHMWPE Rope?
UHMWPE rope is made from Ultra High Molecular Weight Polyethylene, a high-tech engineering fiber known for its extraordinary strength-to-weight ratio. UHMWPE fibers are stronger than steel by weight while remaining extremely lightweight and flexible.
Due to its outstanding mechanical properties, UHMWPE rope has become the preferred alternative to steel wire rope in many industries where high strength, safety, corrosion resistance, and easy handling are critical.
UHMWPE Rope Applications
UHMWPE rope is widely used across multiple industries:
UHMWPE Winch Rope
UHMWPE winch rope is commonly used for vehicle recovery, industrial winches, and heavy-duty pulling operations. Its lightweight design reduces strain on winch systems while improving safety during operation.

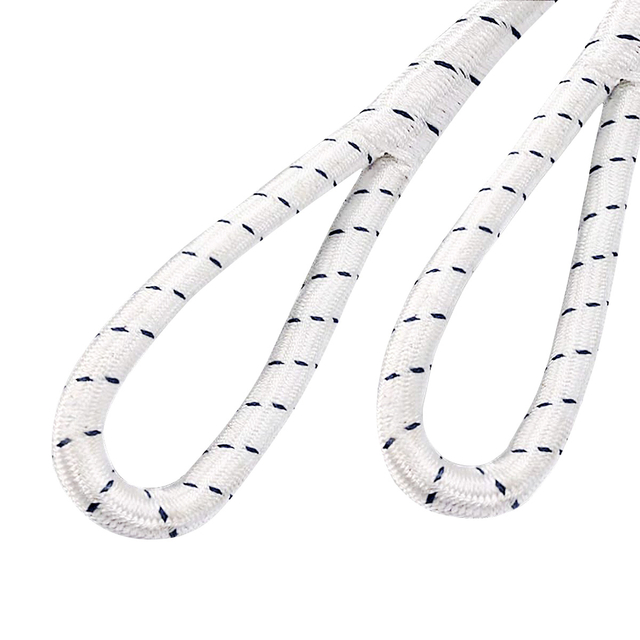

UHMWPE Traction & Pulling Rope
Ideal for electric traction, cable pulling, and power line stringing projects. UHMWPE traction rope provides high breaking strength with low elongation, ensuring stable and controlled pulling performance.
UHMWPE Marine Rope
Used in mooring lines, towing lines, and offshore operations. UHMWPE marine rope offers excellent resistance to saltwater, UV exposure, and abrasion.
UHMWPE Lifting & Rigging Rope
Suitable for lifting, hoisting, and rigging applications where lightweight handling and high safety factors are required.
##UHMWPE Rope Material & Construction
UHMWPE Fiber Characteristics
Ultra-high tensile strength
Extremely lightweight (floats on water)
Low elongation under load
Excellent abrasion resistance
Resistant to chemicals and corrosion
Long fatigue life
Rope Construction Options
NCROPE UHMWPE ropes are available in various constructions:
12-strand braided UHMWPE rope

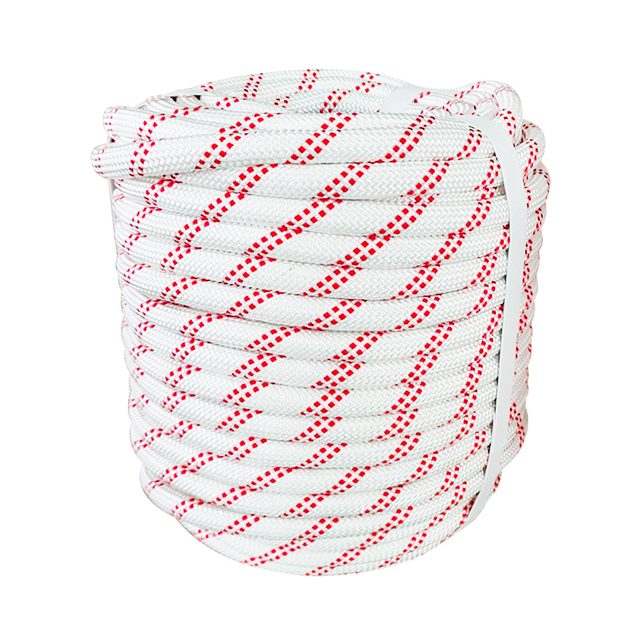

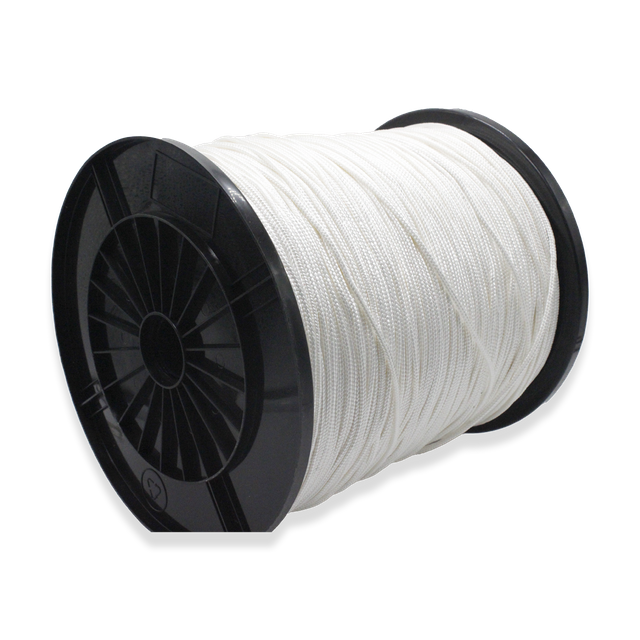

Double braided UHMWPE rope
UHMWPE rope with polyester protective cover
Custom constructions are available to meet specific application requirements.
H2: UHMWPE Rope Specifications
Typical specifications are shown below. Custom diameters and strengths are available.
| Diameter (mm) | Breaking Strength (kN) | Construction | Application |
|---|
| 4 – 6 | 7 – 18 | 12 Strand | Light pulling |
| 8 – 10 | 35 – 60 | 12 Strand / Double Braided | Winch & traction |
| 12 – 16 | 90 – 160 | Double Braided | Heavy-duty pulling |
| 18 – 20 | 200 – 310 | UHMWPE Core | Industrial lifting |
Specifications can be customized according to customer requirements.
Advantages of UHMWPE Rope
✔ Extremely high strength-to-weight ratio
✔ Lightweight and easy to handle
✔ No corrosion or rust
✔ Low recoil for improved safety
✔ Excellent abrasion and fatigue resistance
✔ Long service life in harsh environments
These advantages make UHMWPE rope an ideal solution for replacing traditional steel wire rope.
UHMWPE Rope vs Steel Wire Rope
| Comparison Item | UHMWPE Rope | Steel Wire Rope |
|---|
| Weight | Very light | Heavy |
| Strength-to-weight | Extremely high | Low |
| Safety | No snapback | Dangerous recoil |
| Corrosion | Resistant | Prone to rust |
| Handling | Easy | Difficult |
| Maintenance | Low | High |
UHMWPE rope significantly improves operational efficiency and workplace safety.
How to Choose the Right UHMWPE Rope
When selecting a UHMWPE rope, consider the following factors:
Required breaking strength and safety factor
Application type (winch, traction, marine, lifting)
Working environment (abrasion, UV exposure, moisture)
Rope construction and diameter
Compatibility with pulleys or winches
NCROPE technical team can assist you in choosing the most suitable UHMWPE rope solution.
Why Choose NCROPE UHMWPE Rope?
✔ Professional UHMWPE rope manufacturer
✔ Factory direct supply with competitive pricing
✔ Strict quality control and testing
✔ Custom OEM & ODM services
✔ Global export experience
NCROPE UHMWPE ropes are trusted by customers worldwide for demanding industrial and engineering applications.
Contact Us for UHMWPE Rope Solutions
Looking for a reliable UHMWPE rope supplier or manufacturer? Contact NCROPE today to receive technical support, specifications, and competitive quotations tailored to your project needs.
