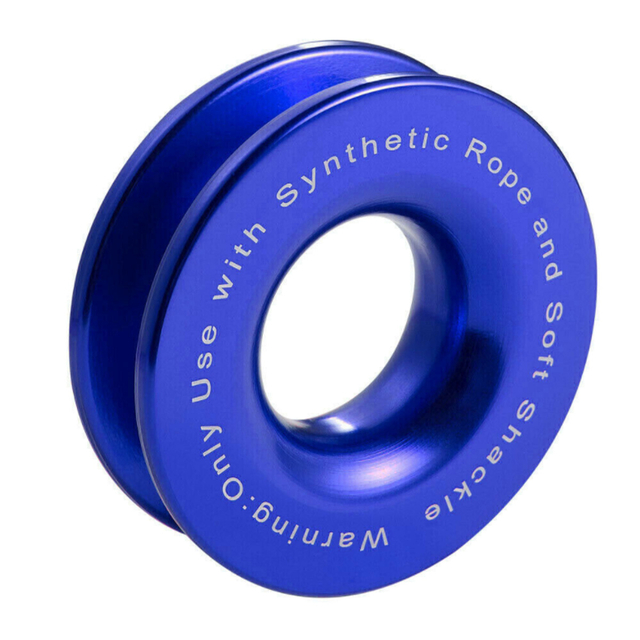

NCROPE snatch recovery ring is a premium forged aluminum recovery ring engineered for off-road vehicle recovery, kinetic rope rigging, and winch line redirection. Designed to work seamlessly with kinetic recovery ropes and tow straps, this high-strength snatch block ring reduces friction and amplifies pulling power during vehicle extraction operations.
A snatch recovery ring is a specialized recovery hardware component used in off-road vehicle recovery to change the direction of a pull or create a mechanical advantage when extracting a stuck vehicle. Unlike traditional snatch blocks with pulley wheels, a snatch recovery ring features a fixed circular design with a smooth, rounded inner surface that allows soft shackles and kinetic ropes to glide through with minimal friction.
Manufactured from 7075 forged aluminum alloy, the snatch recovery ring offers an exceptional strength-to-weight ratio, making it significantly lighter than steel alternatives while maintaining the WLL (Working Load Limit) required for safe vehicle recovery. It is compatible with soft shackles, kinetic recovery ropes, winch ropes, and tow straps webbing.
Off-Road Vehicle Recovery: Used as a redirecting point to change winch line or kinetic rope direction during vehicle extraction
Kinetic Rope Rigging: Creates mechanical advantage when pulling stuck vehicles with kinetic recovery ropes
Winch Line Redirection: Allows winch cables to be redirected around obstacles for safer pulling angles
Towing Operations: Serves as a connection point between tow straps and recovery points
Marine and Industrial Use: Used in marine towing and industrial rigging for line redirection
Material: 7075 Forged Aluminum Alloy
Surface Treatment: Anodized coating for corrosion resistance and wear protection
Key Characteristics:
High Strength: Forged aluminum construction delivers WLL of 10,000-20,000 lbs depending on size
Lightweight: Significantly lighter than steel snatch blocks, reducing kit weight
Smooth Inner Surface: Rounded and polished inner ring eliminates sharp edges that could damage soft shackles
Corrosion Resistant: Anodized finish protects against saltwater, mud, and chemical exposure
Compact Design: No moving parts or pulley wheels to maintain or fail
Soft Shackle Compatible: Designed specifically for use with UHMWPE soft shackles
Model | Inner Diameter | Outer Diameter | Thickness | WLL | MBS | Weight |
|---|---|---|---|---|---|---|
NC-SRR-90 | 90mm | 120mm | 22mm | 10,000 lbs | 30,000 lbs | 0.5 kg |
NC-SRR-120 | 120mm | 150mm | 25mm | 15,000 lbs | 45,000 lbs | 0.9 kg |
NC-SRR-150 | 150mm | 180mm | 28mm | 20,000 lbs | 60,000 lbs | 1.4 kg |
Simplicity: No moving parts means less maintenance and fewer failure points compared to pulley snatch blocks
Safety: Forged aluminum construction with safety factor of 3:1 ensures reliable performance under load
Versatility: Compatible with soft shackles, kinetic ropes, winch ropes, and webbing straps
Portability: Compact and lightweight, easy to carry in any recovery kit
Durability: Anodized finish withstands harsh off-road, marine, and industrial environments
Cost-Effective: Simpler design and manufacturing process translates to competitive pricing
Feature | Snatch Recovery Ring | Traditional Snatch Block |
|---|---|---|
Construction | Single forged piece | Moving pulley wheel + side plates |
Weight | Light (0.5-1.4 kg) | Heavier (2-5 kg) |
Moving Parts | None | Pulley wheel, pins |
Maintenance | Minimal | Regular lubrication needed |
Soft Shackle Use | Yes (designed for it) | Limited compatibility |
Friction | Slightly higher | Lower (rolling friction) |
Cost | Lower | Higher |
Vehicle Weight: Select a ring with WLL at least 1.5 times the GVWR of the vehicle being recovered
Inner Diameter: Ensure the inner diameter accommodates your soft shackle or rope loop size
Recovery Scenario: For heavy-duty recovery, choose larger rings with higher WLL ratings
Compatibility: Verify compatibility with your existing recovery gear (soft shackles, kinetic ropes)
Environment: For marine or corrosive environments, ensure anodized finish is intact
NCROPE is a professional recovery gear manufacturer with over 15 years of experience in producing high-quality recovery hardware. Our snatch recovery rings are:
Certified Quality: Manufactured to meet strict quality standards with documented WLL and MBS ratings
Premium Materials: Made from 7075 forged aluminum alloy for optimal strength and weight
Tested Performance: Each batch undergoes rigorous load testing to ensure safety and reliability
Custom Options: Available in multiple sizes, colors, and surface treatments
OEM/ODM Support: Custom branding, packaging, and specifications available
Global Export: Trusted by off-road enthusiasts and recovery professionals worldwide
