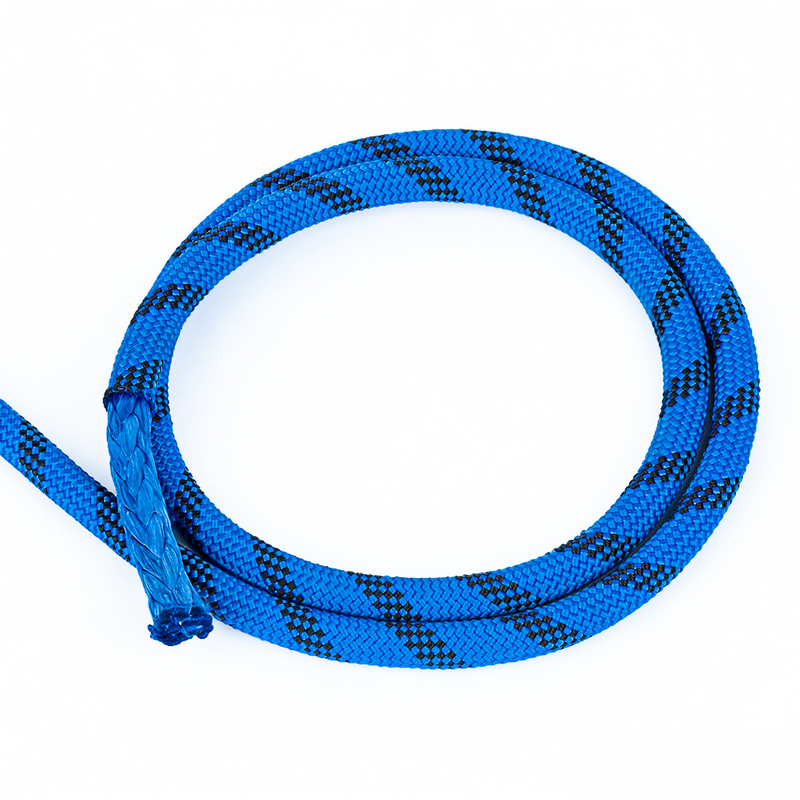

Polyester Covered UHMWPE Electric Traction Rope is designed for electric cable and conductor pulling applications where abrasion resistance, durability, and stable traction performance are critical.
By combining a high-strength UHMWPE core with a polyester protective jacket, this traction rope offers an ideal balance between lightweight handling and extended service life, especially in environments involving pulleys, ground contact, and repeated bending.
Compared with pure UHMWPE traction rope, the polyester cover significantly improves resistance to surface wear, making it a preferred choice for demanding power line and cable installation projects.
UHMWPE Core with High Tensile Strength Delivers exceptional strength-to-weight ratio, allowing high load capacity with minimal rope diameter.
Polyester Protective Jacket Enhances abrasion resistance and protects the core from friction, dirt, and mechanical wear during pulling operations.
Low Elongation for Stable Traction Maintains consistent pulling force, reducing the risk of sudden load changes during cable installation.
Lightweight & Easy Handling Much lighter than steel wire rope, improving on-site efficiency and reducing labor fatigue.
Non-Conductive & Corrosion Resistant Suitable for electric power environments, unaffected by moisture, chemicals, or harsh weather conditions.
While pure UHMWPE traction rope offers excellent strength and low weight, abrasive environments can shorten its service life.
Polyester covered UHMWPE traction rope is recommended when:
The rope frequently runs over pulleys or sheaves
There is ground contact during pulling
Projects involve long-distance or repeated traction
Extended durability is more important than minimal weight
The polyester jacket acts as a sacrificial layer, protecting the UHMWPE core and reducing replacement frequency.
This polyester covered electric traction rope is widely used in:
Electric power line and conductor pulling
Overhead transmission line stringing projects
Underground and duct cable installation
Pulley-based traction systems
Utility and infrastructure construction projects
It is especially suitable for abrasive pulling environments where rope longevity is a key concern.
| Item | Description |
|---|---|
| Core Material | UHMWPE (Ultra High Molecular Weight Polyethylene) |
| Jacket Material | Polyester |
| Construction | Double braided |
| Diameter Range | 4 mm – 20 mm (customizable) |
| Breaking Strength | Up to 31 tons |
| Elongation | Low stretch |
| Color | Customized |
| Length | Customized |
Specifications can be customized according to project requirements.
| Rope Type | Key Advantage | Best Use Scenario |
|---|---|---|
| Pure UHMWPE Traction Rope | Extremely lightweight | Long-distance pulling with minimal abrasion |
| Polyester Covered UHMWPE Traction Rope | High abrasion resistance | Pulley systems, ground contact environments |
| Steel Wire Rope | High rigidity | Heavy fixed installations (limited flexibility) |
Q1: What is the main advantage of polyester covered UHMWPE traction rope? The polyester jacket significantly improves abrasion resistance while maintaining high strength and low weight.
Q2: Is this rope suitable for electric cable pulling? Yes. It is non-conductive, corrosion resistant, and designed specifically for electric traction and cable pulling applications.
Q3: Can diameter and length be customized? Yes. Diameter, length, color, and packaging can all be customized based on project requirements.
Q4: Can this rope be used with pulleys and winches? Yes. The double braided structure and polyester cover make it suitable for pulley and winch traction systems.
If you are looking for a durable, abrasion-resistant electric traction rope for demanding pulling environments, our Polyester Covered UHMWPE Electric Traction Rope provides a reliable and cost-effective solution.
Contact us to receive technical recommendations, load calculations, or a customized quotation.
