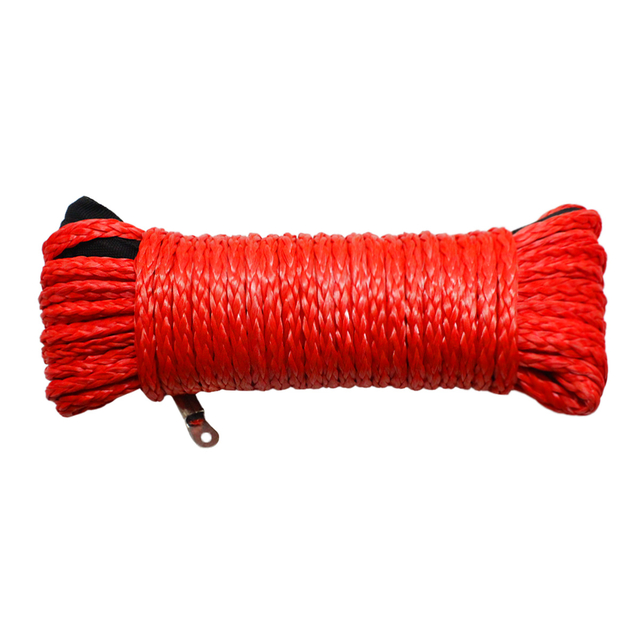

NCROPE winch rope is a high-performance synthetic winch line manufactured from UHMWPE (Ultra-High Molecular Weight Polyethylene) fiber with a tightly braided construction, designed as a safe, lightweight replacement for steel cable on vehicle-mounted electric winches used for off-road recovery, towing, and industrial pulling applications.
Our UHMWPE winch rope offers 8-10 times the strength-to-weight ratio of steel cable of the same diameter, does not develop dangerous burrs or kinks, and will not recoil dangerously if it breaks under load. It floats on water, resists UV and chemicals, and is significantly safer to handle with bare hands.
NCROPE provides full customization including diameter, length, breaking strength, end fittings (hooks, thimbles), protective sleeves, color, and private-label packaging for winch manufacturers, off-road equipment distributors, and OEM brands worldwide.
A winch rope, or synthetic winch line, is a high-strength rope made from UHMWPE fiber that replaces traditional steel wire cable on electric and hydraulic winches. The rope is wound onto the winch drum and used for pulling, lifting, or vehicle self-recovery. Unlike steel cable, synthetic winch rope does not store kinetic energy under tension, meaning if it breaks, it simply drops to the ground rather than whipping back dangerously.
UHMWPE winch ropes typically feature a braided 12-strand or double-braid construction with a protective coating or sleeve on the first few meters to resist abrasion from the fairlead roller or hawse. The end fitting is usually a hook, clevis, or loop for attaching to recovery points, anchors, or loads.
Primary use on 4x4 vehicles, trucks, and ATVs equipped with electric winches for self-recovery from mud, sand, snow, or steep terrain.
Used on industrial winches for pulling loads, positioning equipment, cable pulling, and material handling in construction and utility work.
Used on boat trailer winches for launching and retrieving boats. Will not rust in saltwater and will not damage boat hull if it contacts the surface.
Applied in utility winches for tree felling, log skidding, fence stretching, and general farm and ranch work requiring reliable pulling.
Material: UHMWPE (Ultra-High Molecular Weight Polyethylene) fiber
Strength-to-weight: 8-10x stronger than steel cable of same diameter
Construction: 12-strand braid or double braid with protective sleeve
Elongation: Low stretch (3-3.5% at break) for precise control
Specific gravity: 0.97, floats on water
Safety: Does not recoil dangerously if broken under load
Handling: Will not develop burrs, kinks, or splinters
UV resistance: Excellent resistance to ultraviolet degradation
Temperature: Flexible from -43C to +80C

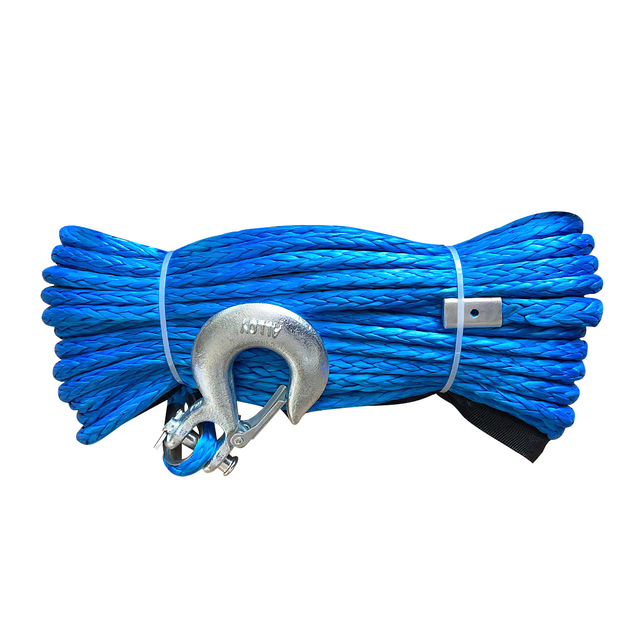

End fittings: Hook, thimble, loop, or custom terminations available
Diameter (mm) | Breaking Strength (kg) | Length (m) | Winch Rating |
|---|---|---|---|
6 | 1,800 | 15-30 | 2,000-3,500 lb |
8 | 3,200 | 15-30 | 4,000-6,000 lb |
10 | 5,000 | 20-30 | 8,000-9,500 lb |
11 | 6,500 | 20-30 | 10,000-12,000 lb |
12 | 7,500 | 20-30 | 12,000-15,000 lb |
14 | 10,500 | 25-30 | 15,000-18,000 lb |
Custom diameters, lengths, end fittings, and protective sleeves available. Select rope with breaking strength at least 1.5x the winch rated line pull.
Safer than steel cable: Drops flat if broken, no dangerous recoil
Lighter weight: 80% lighter than steel cable, reduces winch motor load
No burrs or kinks: Can be handled with bare hands safely
Does not rust: Saltwater and corrosion resistant for marine use
Floats on water: Ideal for boat trailer and marine winch applications
Easier to spool: More flexible than steel, winds evenly on drum
Longer service life: Resists fatigue and abrasion better than steel cable
Energy efficient: Lighter weight reduces winch power consumption
Feature | UHMWPE Winch Rope | Steel Cable |
|---|---|---|
Weight | ~1/8 of steel | Heavy |
Failure mode | Drops flat | Recoils dangerously |
Burrs/splinters | None | Develops burrs |
Rust | No | Yes, especially in saltwater |
Bare hand handling | Yes | No, needs gloves |
Floats | Yes | No |
Cost | Higher initial | Lower initial |
Service life | Longer | Shorter (fatigue) |
1. Match diameter to winch: Check your winch drum and fairlead specifications to ensure the rope diameter fits properly.
2. Select breaking strength: Choose a rope with breaking strength at least 1.5 times the rated line pull of your winch.
3. Determine length: Standard lengths are 15-30 meters. Choose based on the maximum pulling distance you need.
4. Choose end fitting: Hook, thimble, loop, or custom fitting to match your recovery hardware.
5. Add protective sleeve: A abrasion-resistant sleeve on the first 3-5 meters protects the rope from fairlead wear.
6. Use proper fairlead: Always use a hawse or roller fairlead designed for synthetic rope to prevent damage.
NCROPE (New Coast Rope Industry) is a professional rope manufacturer with over 20 years of experience producing high-performance synthetic fiber ropes. We provide:
Premium UHMWPE fibers: Top-grade materials for consistent strength
Precision braiding: Uniform construction for reliable spooling on winch drums
Full customization: Diameter, length, breaking strength, end fittings, sleeves, color, packaging
Quality testing: Each batch tested for breaking strength and construction integrity
OEM and private label: Custom branding and specifications for winch manufacturers and distributors
Global shipping: Fast production turnaround and worldwide logistics
Technical support: Expert guidance on rope selection, installation, and maintenance
For quotes, specifications, or technical assistance with winch rope, contact NCROPE today:
Email: info@ncrope.com
Website: www.ncrope.com
Phone: +86-514-86884888
Address: New Coast Rope Industry, Baoying County, Yangzhou City, Jiangsu Province, China
Always inspect winch rope before use. Use a hawse fairlead designed for synthetic rope. Never exceed the rated breaking strength.
