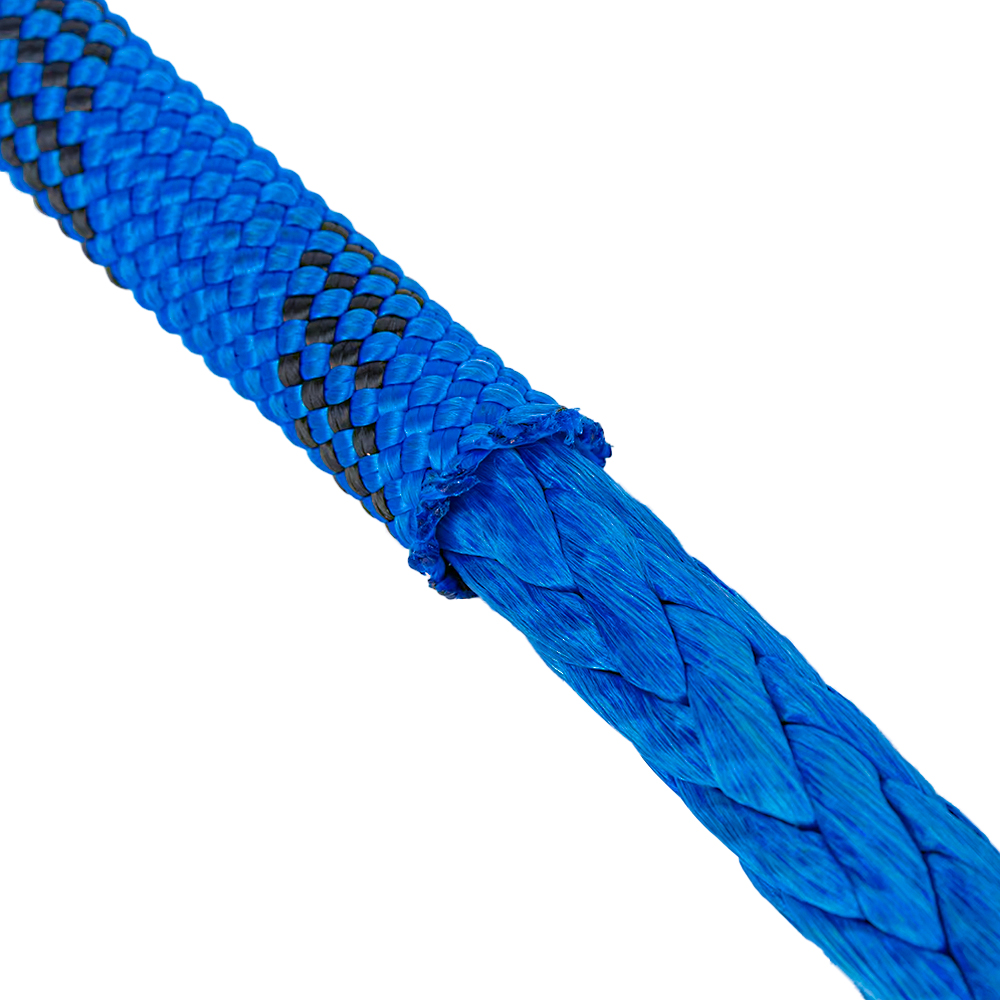

UHMWPE Braided Rope with Tight-Woven Jacket and Custom Marker Threads

Double-Braided UHMWPE Rope

NCROPE UHMWPE Braided Rope with Tight-Woven Jacket and Custom Marker Threads is a specialty high-performance polymer rope engineered for applications requiring both exceptional mechanical properties and enhanced operational visibility. Constructed from 100% UHMWPE (Ultra-High Molecular Weight Polyethylene) fiber in a 12-strand single-braid architecture with an unusually dense, tight-woven jacket, this rope offers the renowned strength-to-weight ratio and low stretch of UHMWPE while introducing a unique functional feature — customizable marker threads braided directly into the rope's structure during manufacture.

Unlike conventional ropes where tape or paint markings can wear off during use, our marker threads are woven into the braiding pattern itself, becoming an integral part of the rope's fiber structure. This eliminates the common problem of fading, peeling, or abrasion-induced marking loss. The marker threads can be specified in virtually any color combination, placement interval, and functional pattern — including sequential length markings (every meter, every 5 meters, every fathom), directional twist indicators, load-capacity color coding, manufacturer brand identification stripes, or custom logo weave patterns — giving each customer rope a tailored visual identity that enhances operational safety and efficiency.

Key Features

Tight-Woven Dense Braided Jacket : The specially engineered tight-woven jacket construction uses a higher-than-standard braid pick count per unit length, creating an ultra-dense protective outer layer that maximizes abrasion resistance, reduces snagging, and prevents fiber damage from repeated contact with sharp edges, hardware, or rough surfaces.

12-Strand UHMWPE Single-Braid Core : The 12-strand single-braid UHMWPE core delivers the rope's primary tensile strength — up to 15x that of steel wire on an equal-weight basis — while remaining completely torque-free and stable under load, eliminating the dangerous spin and hockling common with twisted constructions.

Custom Embedded Marker Threads (Patented Process) : Marker threads are woven directly into the braiding pattern at specified intervals during rope manufacture. Unlike surface-applied markings that wear off, these embedded threads are permanent and abrasion-proof. Configurations include:

• Length markers (every 1m / 2m / 5m / 10m / custom intervals)

• Direction markers (to prevent twist propagation during winching)

• Load-grade color coding (different colors for different working load limits)

• Brand stripes / custom logo patterns




Near-Zero Elongation Under Working Load : UHMWPE's inherent low stretch combined with the tight-braid architecture results in less than 2% elongation at 100% working load — critical for precision rigging, lifting, and positioning operations where rope slack creates risk.

Superior Abrasion & Cut Resistance : The dense tight-woven jacket forms a tough barrier that shields the high-strength core from friction and cuts. The compact braid structure distributes impact forces across more fibers than standard open-braid constructions, improving overall damage tolerance.

Inherent UV, Saltwater & Chemical Resistance : UHMWPE requires no protective coatings to resist ultraviolet radiation, saltwater corrosion, acids, alkalis, and most industrial chemicals — maintaining >95% strength retention even after years of continuous outdoor or marine exposure.

Floatation & Zero Moisture Absorption : With a density of ~0.96 g/cm³, the rope naturally floats on water and absorbs zero moisture, unlike nylon which can lose strength when wet. Performance remains fully consistent in all environments.

Advantages

• Permanent embedded marker threads never wear off — unlike tape, paint, or hot-stamp markings that fade or peel during field use

• Rapid length and distance assessment under load without needing a separate measuring tape

• Visual directional markers prevent twist propagation on winch drums, reducing wear and preventing dangerous rope kinks

• Color-coded load markers enable quick identification of rope capacity by operators under high-pressure conditions

• Dense tight-woven jacket lasts significantly longer than standard braid constructions under heavy abrasion

• Tighter braid produces a smoother surface that glides more easily through pulleys, fairleads, and hardware

• 15x strength-to-weight ratio vs. steel wire — dramatically reduces operational load and handling fatigue

• Fully customizable color combinations and marker patterns for OEM/private label product differentiation




Typical Applications

Marine Mooring & Anchor Rode : Length-marked configuration lets crew quickly deploy accurate scope ratios for safe anchoring; directional markers prevent twist buildup in rope rodes running through hawsepipes and anchor rollers.

Winch & Recovery Ropes : Color-coded directional markers alert operators to twisted rope condition; length markings help gauge recovery distance and prevent winch over-spooling. Low stretch is critical for controlled, snap-free vehicle recovery.

Industrial Rigging & Hoisting : Color-coded load-grade markers enable crane operators to instantly match the right rope to the job. Length markings simplify rigging setup and eliminate trial-and-error cut-to-length guessing.

Safety & Rescue Operations : Pre-marked rope simplifies search-and-rescue rope handling at height, in confined spaces, or over water where rapid length assessment saves critical time. High visibility marker colors also improve rope detection in low-light environments.

Fisheries & Aquaculture : Length-marked ropes used for longline fishing, cage aquaculture, and net deployment — where precise rope lengths directly impact fishing efficiency and regulatory compliance.

Events & Stage Rigging : Custom brand-stripe configurations for stage rigging, marquee tensioning, and event safety lines — providing both functional length markings and a branded visual identity.

Why Choose NCROPE?

As a professional rope manufacturer with 20+ years of production experience, NCROPE (New Coast Rope Industry) specializes in high-performance synthetic rope engineering and manufacturing. When you choose our 12/24 UHMWPE Double Braided Rope, you benefit from:

• Factory-direct pricing — No middlemen, competitive wholesale costs for bulk and OEM orders

• Strict quality control — Every production batch tested to verified breaking strength specifications

• Full customization capability — Diameter, length, color, packaging, and private label options

• Global export experience — Trusted by customers in North America, Europe, Australia, Southeast Asia, the Middle East, and Africa

• Technical support — Our engineering team can help specify the right rope for your exact application requirements
