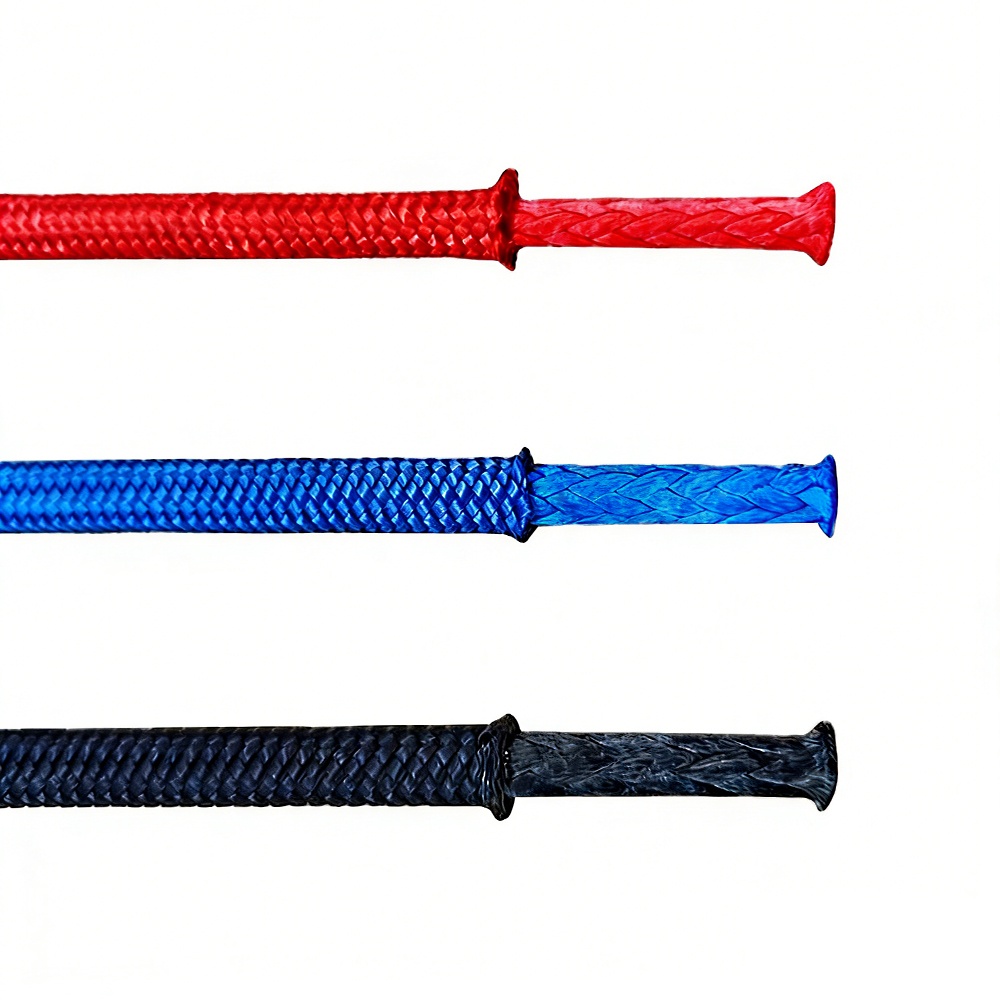

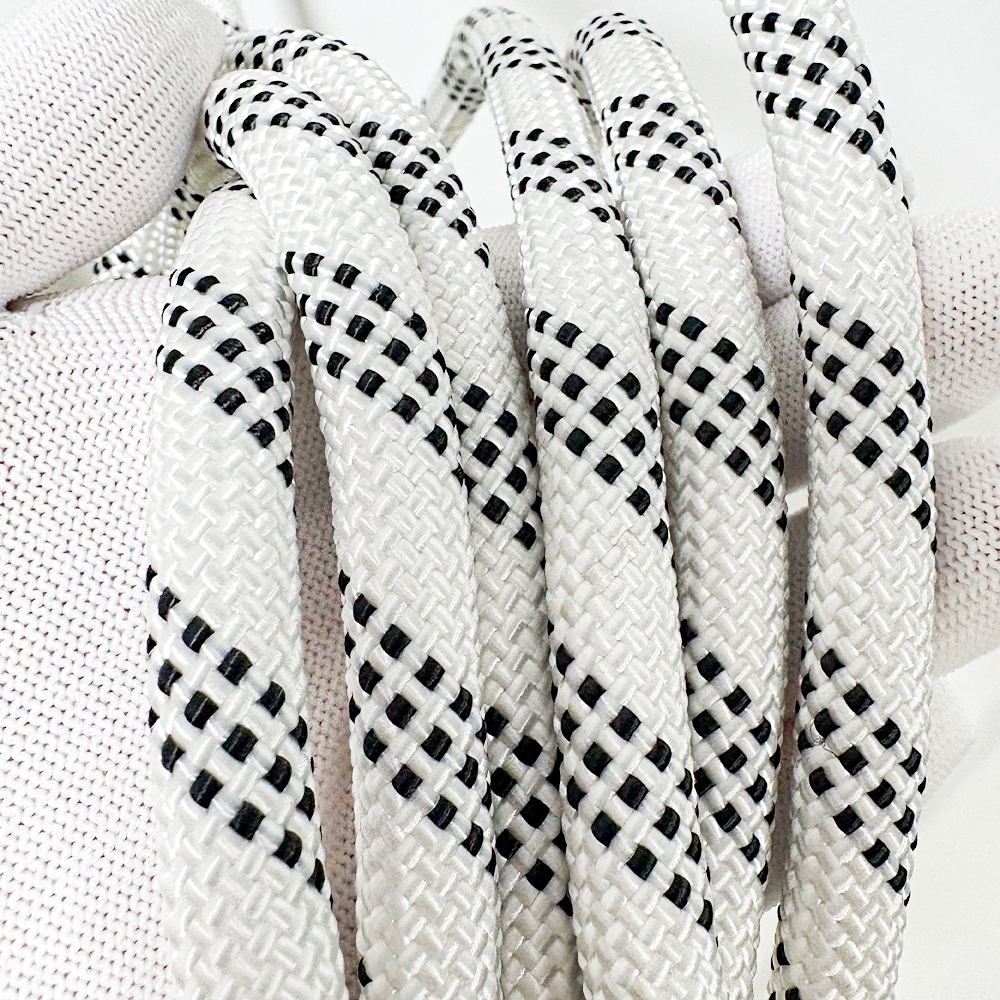

Double Braided Outer Skin with 12-Strand Braided Inner Core Rope

NCROPE Double Braided Rope with 12-Strand Braided Inner Core is a high-stability dual-layer structured utility rope, professionally engineered for heavy-duty and long-term outdoor use. This rope adopts a premium dual braid design: tight and compact double braided outer skin and high-strength 12-strand parallel braided inner core.

Diameter:	24mm 36mm 18mm 16mm 14mm 12mm 10mm
Availability:

Quantity:



Inquire Add to Basket

Model:
nc2412
Brand:
new coast

Product Description

Double Braided Outer Skin with 12-Strand Braided Inner Core Rope – Tight Weave High Stability Utility Rope

Diameter	10mm / 12mm / 14mm / 16mm /24mm/36mm Custom

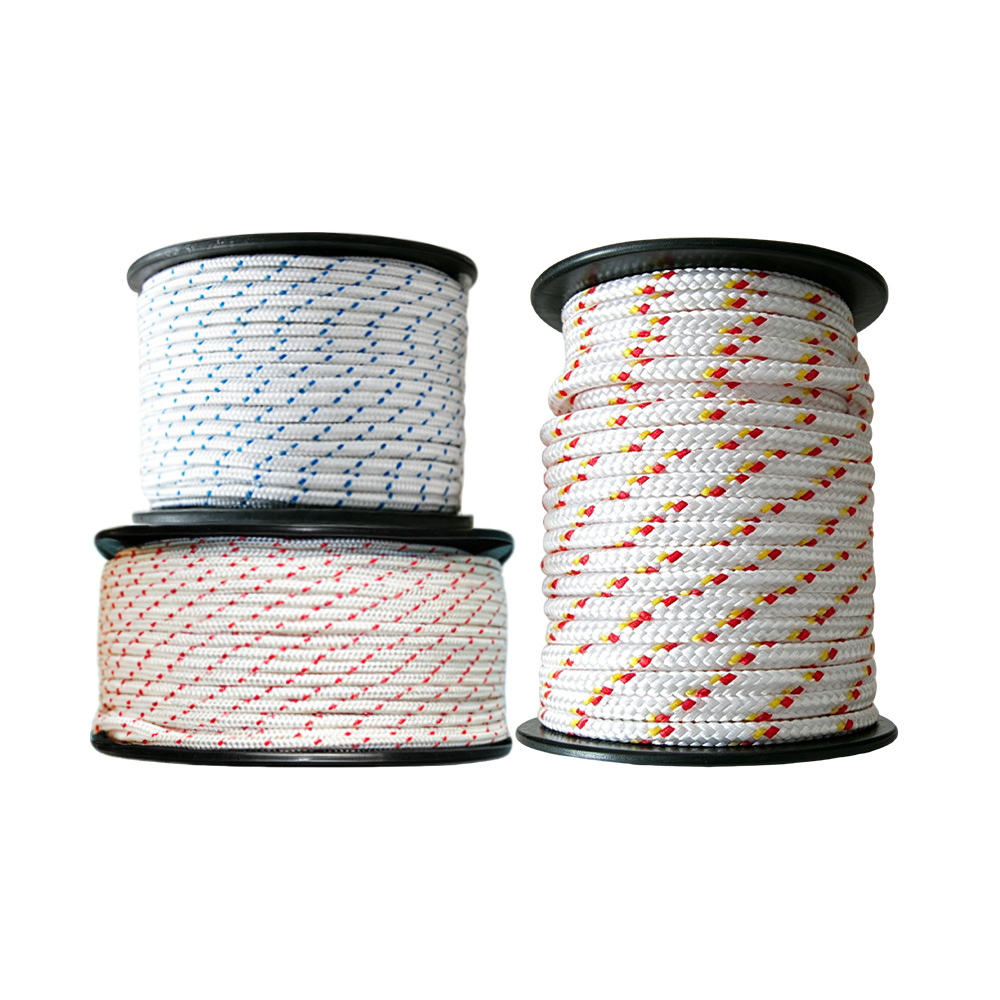

Length	500m / 200m / 300m / Custom Roll
Color	White, Blue, Green, Black, Red, Orange, Custom Colors
Availability	Custom OEM & ODM Available

Product Description

NCROPE Double Braided Rope with 12-Strand Braided Inner Core is a high-stability dual-layer structured utility rope, professionally engineered for heavy-duty and long-term outdoor use. This rope adopts a premium dual braid design: tight and compact double braided outer skin and high-strength 12-strand parallel braided inner core.

Different from conventional single braid or twisted core ropes, its dual full-braid structure delivers unified strength distribution, excellent structural stability, and superior wear resistance. The tightly woven outer jacket effectively resists fraying and surface damage, while the 12-strand braided core provides consistent tensile strength and stable load-bearing performance. It serves as an all-purpose durable rope for marine mooring, industrial rigging, outdoor towing, and daily heavy binding scenarios.

Key Features

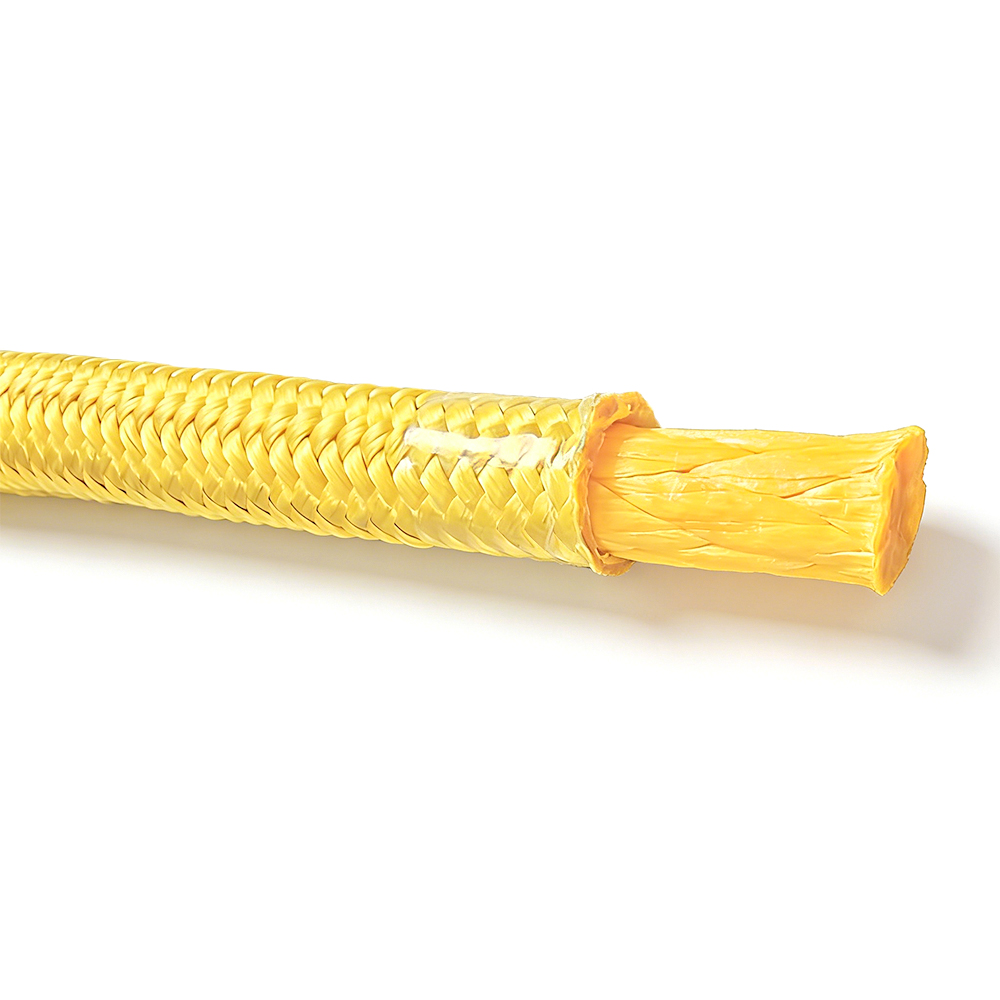

Dual Full-Braid Structure：Tight double braided outer skin + integrated 12-strand braided inner core, no loose strands, overall force-bearing and more stable than twisted core ropes.
Tight Compact Outer Weave：High-density woven outer layer prevents sand, dust and moisture penetration, effectively avoiding internal abrasion and core corrosion.
Uniform & Stable Tensile Strength：12-strand symmetrical braided core ensures even force distribution, no local stress concentration, improving overall load safety factor.
Excellent Abrasion & Impact Resistance：Reinforced double braid outer skin withstands long-term friction, pulling and outdoor harsh environment erosion.
Torque-Free & Easy Operation：Balanced braiding technology eliminates twisting and kinking, easy to splice, coil, tie knots and store without tangling.
Full Customization Support：Custom diameter, roll length, color, spliced eye ends, logo printing and personalized packaging for bulk orders.

Product Advantages

Dual braid integrated structure, not easy to deform or loose after long-term tension
Tight outer weave protects inner core, greatly extending rope service life
Higher overall stability and safety than twist-core and single-braid ropes
Weather-proof, UV-resistant and wear-resistant for all-season outdoor use
Smooth surface, no burrs, will not scratch hands and equipment
Cost-effective industrial & marine grade heavy-duty braided rope

Typical Applications

Marine & Boating: Boat mooring lines, anchor ropes, yacht tying, offshore auxiliary rigging, long-term water environment fixing
Industrial Rigging: Heavy equipment binding, cargo fixing, workshop hoisting auxiliary rope, mechanical tensioning
Outdoor & Towing: Off-road vehicle recovery, outdoor heavy towing, camping equipment fixing, engineering temporary binding
Daily & Commercial Use: Logistics cargo bundling, facility maintenance rope, general heavy-duty utility rope

Technical Specifications

Structure	Double Braided Outer Skin + 12-Strand Braided Inner Core
Material	High-tenacity Polyester / Nylon / UHMWPE (Optional)
Diameter Range	6mm - 16mm (Customizable)
Breaking Strength	10kN - 130kN (Depends on material & diameter)
Structure Performance	Tight weave, anti-loose, anti-fray, torque-free
Environmental Resistance	UV Resistant, Wear Resistant, Water & Mildew Resistant
Packaging	Standard roll / spool / custom OEM packaging

Selection Guide

Marine long-term mooring: Choose polyester or UHMWPE material double braid rope for superior corrosion and UV resistance
Towing & shock load scenarios: Select nylon material version with better toughness and buffer performance
Heavy-duty industrial fixing: Pick large diameter (10mm-16mm) specification for higher structural stability and tensile strength

Safety Notes

Do not overload the rope beyond its rated breaking strength during towing and lifting
Avoid long-term friction with sharp edges to prevent outer braided skin wear
Check the outer weave tightness and core integrity regularly before heavy-duty use
Not applicable for professional high-altitude safety climbing and life-saving protection

Why Choose NCROPE

NCROPE is a professional manufacturer of high-stability double braided ropes. Every dual-layer braided rope is strictly inspected for weaving density, structural stability and tensile performance. We support full personalized customization, stable batch quality, fast delivery and competitive wholesale prices, providing reliable rope solutions for global marine, industrial and outdoor industries.

FAQ

Q: What are the advantages of double braided outer with 12-strand braided core rope?A: Compared with ordinary single braid or twisted core ropes, the full-braid dual structure features tighter weaving, more uniform force, no loose strands, better wear resistance and longer service life.

Q: Can I choose different materials for this rope?A: Yes, polyester, nylon and UHMWPE materials are optional to meet different needs of shock absorption, low stretch and corrosion resistance.

Q: Is customized processing available?A: We support custom diameter, length, color, hand-spliced loops, logo printing and exclusive packaging for bulk OEM orders.
