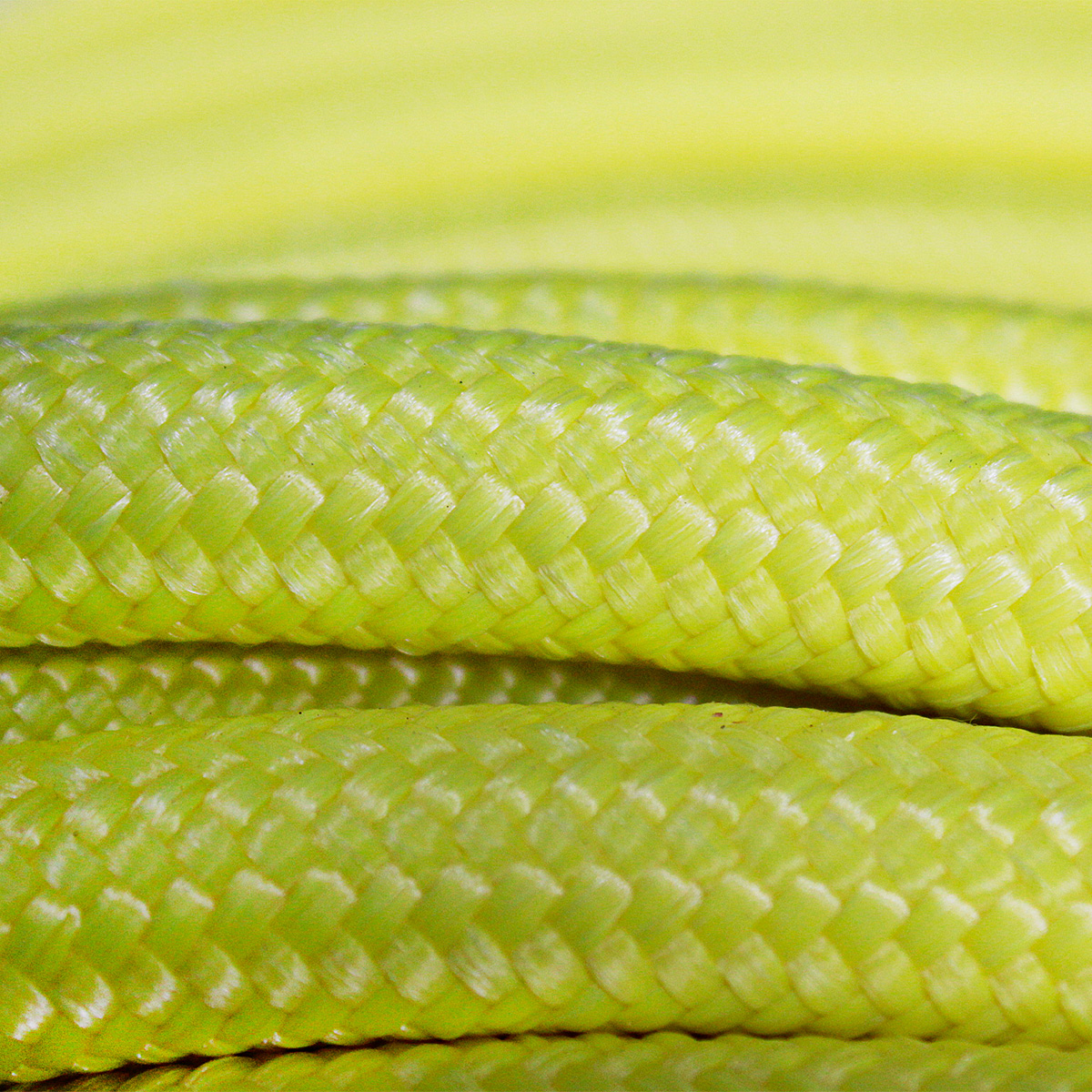

Large Diameter UHMWPE Braided Rope for Heavy-Duty Industrial & Marine Engineering

Product Description

NCROPE Large Diameter UHMWPE Braided Rope is a heavy-duty engineering rope specifically developed for the most demanding industrial and marine applications — where loads are measured in hundreds of tonnes, service environments are relentlessly corrosive, and failure is not an option. Manufactured from 100% virgin UHMWPE fiber in large-diameter 12-strand braided and double-braided constructions, this rope delivers the extraordinary strength-to-weight ratio of UHMWPE at a scale suitable for ship mooring, offshore towing, heavy-lift rigging, and large-scale industrial operations.

Replacing traditional steel wire rope with large-diameter UHMWPE rope delivers transformative operational benefits. A 64mm UHMWPE rope offers breaking strength comparable to a 120mm+ steel wire rope while weighing approximately 1/7 as much — eliminating the need for heavy lifting equipment to handle the rope itself, dramatically reducing crew injury risk from snapped wire strands, and removing the entire corrosion-maintenance cycle required by steel. UHMWPE is inherently immune to saltwater corrosion, requires no galvanizing or lubrication, and will never develop the dangerous "meat hook" broken strands that make steel wire rope hazardous to handle.

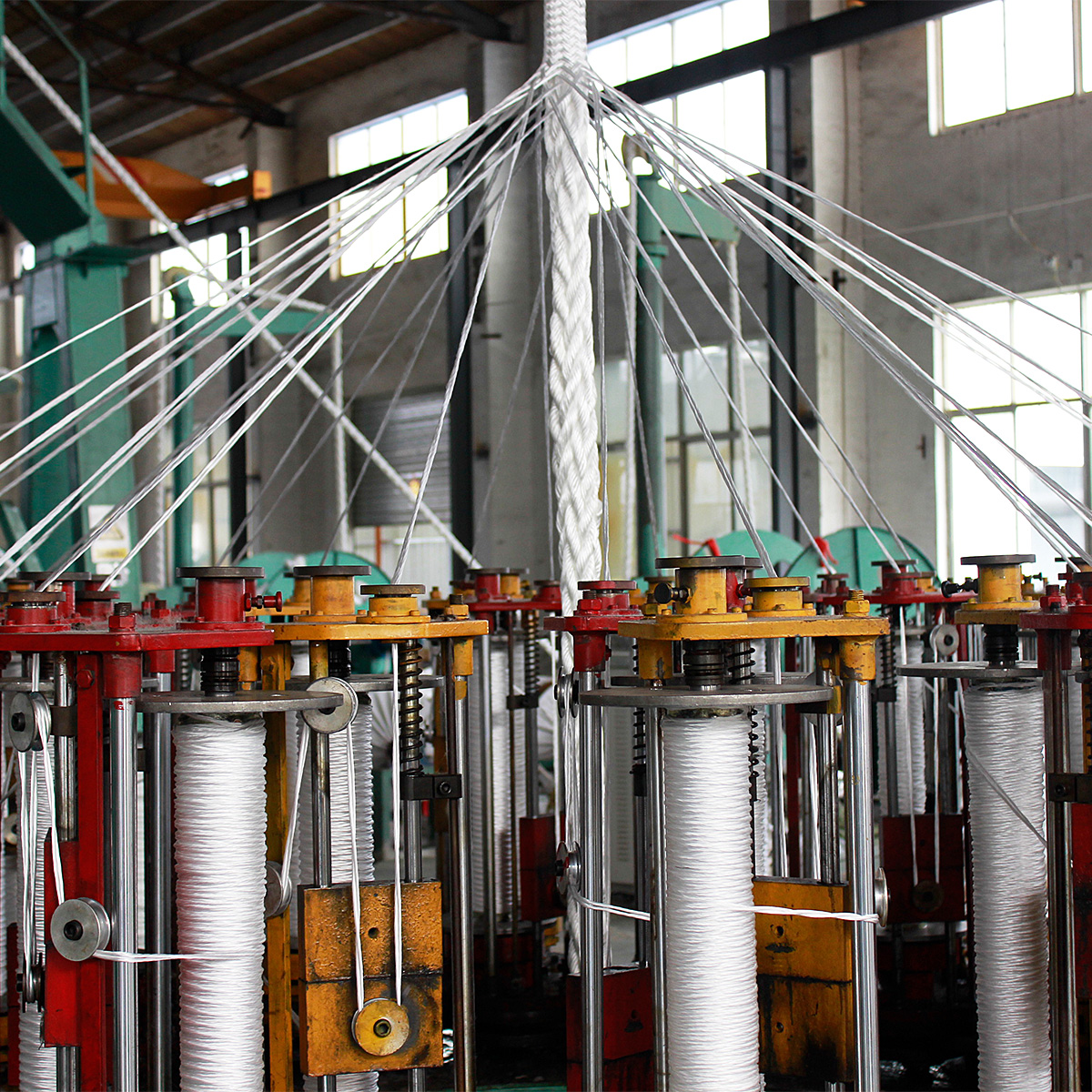

Our large-diameter production capability is supported by specialized heavy-duty braiding machines capable of handling up to 160mm finished diameter in a single continuous braid, ensuring uniform fiber tension and consistent breaking strength across the entire length. Every production batch is subjected to destructive breaking strength testing, and a certificate of test is available on request for critical safety applications.

Key Features

Extreme Breaking Strength at Large Diameter : Available in diameters from 32mm to 160mm with breaking strengths ranging from 800kN to 3,000kN+. A 96mm UHMWPE braided rope achieves breaking strength comparable to a 180mm steel wire rope, enabling massive load capacity without the weight, corrosion, and handling hazards of steel.

Up to 20x Strength-to-Weight Ratio vs. Steel : UHMWPE fiber is up to 15 times stronger than steel wire on an equal-weight basis, and when the diameter scaling is factored in for large ropes, the effective handling advantage reaches ~20x. A rope that once required a crane to position can now be carried and deployed by hand.

Torque-Free 12-Strand Braided Construction : The 12-strand single-braid architecture produces a completely balanced, torque-free rope that will not spin, hockle, or develop the stored rotational energy that makes large twisted ropes dangerous during sudden load release.

Ultra-Low Stretch for Precision Control : Elongation at working load is under 3%, providing predictable, precise load positioning essential for ship mooring, offshore positioning, and heavy lift operations where uncontrolled rope stretch creates risk.

Zero Corrosion, Zero Maintenance : Unlike steel wire rope, UHMWPE never rusts, requires no galvanizing, no lubrication, no wire brushing, and no periodic inspection for broken strands. Maintenance costs are effectively eliminated over the rope's service life.

Floats & Absorbs Zero Water : With a density of ~0.96 g/cm³, the rope floats on water and absorbs no moisture. Breaking strength is fully retained in wet conditions — critical for marine mooring and offshore operations.

No Recoil / Stored Energy Hazard on Failure : Unlike steel wire rope, UHMWPE rope does not store dangerous elastic energy that releases violently on breakage. In the event of a failure event, the rope simply drops — drastically reducing crew injury risk.

Spliceable & Field-Repairable : Large-diameter UHMWPE ropes can be spliced on site using standard 12-strand splice techniques, allowing field repair and custom-length termination without specialized welding equipment.

Customizable to Specification : Diameter, length, braid structure, color, protective jacket/coating, and termination hardware (thimbles, eyes, shackles) can all be specified for OEM and engineered projects.

Advantages

• Replaces steel wire rope at a fraction of the weight — no crane required for rope handling

• Eliminates corrosion, galvanizing, and lubrication maintenance entirely — lower total cost of ownership

• No broken wire strands — dramatically safer to handle than steel wire rope

• No stored energy on failure — reduces catastrophic recoil injury risk

• Floats on water and absorbs no moisture — consistent performance in all marine environments

• Torque-free braided construction prevents spin and hockle — safer under dynamic load

• Spliced on-site without welding equipment — faster repairs, less downtime

• Longer service life in saltwater and chemical environments than any steel alternative

• Available up to 160mm diameter with certified breaking strength testing

Typical Applications

Ship Mooring & Berthing : Large-diameter UHMWPE ropes serve as primary mooring lines for commercial vessels, tankers, bulk carriers, barges, and naval ships — replacing steel wire and heavy nylon mooring lines with lightweight, low-stretch, corrosion-free alternatives.

Offshore Towing & Anchor Handling : Used for offshore towing of rigs, barges, and floating platforms, as well as anchor handling operations where extreme strength, low stretch, and floatation are simultaneously required.

Heavy Lift & Rigging Engineering : Specified for heavy lift crane rigging, module lifting, and large-scale rigging operations where the weight of the rigging itself must be minimized to preserve lifting capacity.

Marine Construction & Engineering : Deployed for subsea installation, pipeline laying, offshore platform construction, and port engineering works requiring high-strength, corrosion-resistant load lines.

Industrial Towing & Hauling : Used for heavy equipment recovery, industrial towing of railcars and machinery, and large-scale material handling where steel wire rope is impractical or hazardous.

Wind Energy & Renewables : Applied in offshore wind turbine installation and maintenance, where low stretch and zero corrosion are essential for long-term reliability.

Defense & Naval Operations : Specified by naval forces for ship-to-ship transfer, replenishment at sea, and specialized maritime operations requiring lightweight, high-strength, non-corrosive load lines.

Why Choose NCROPE?

NCROPE (New Coast Rope Industry) is a professional chemical rope manufacturing enterprise with 20+ years of production experience and a 30,000 m² facility in Yangzhou, China. Our large-diameter braiding capability — with specialized heavy-duty braiders operating up to 160mm finished diameter — positions us among the leading suppliers of industrial-scale UHMWPE ropes worldwide. When you choose NCROPE for your heavy-duty rope project, you benefit from:

• Large-diameter manufacturing capability — heavy-duty braiders handling up to 160mm in a single continuous braid

• Certified breaking strength testing — destructive tensile testing on every production batch, certificates available

• Full customization — diameter, length, braid structure, color, coating, and termination hardware all configurable

• Factory-direct pricing — competitive wholesale pricing for bulk and project orders

• Engineering support — our technical team can assist with rope selection, load calculations, and termination design for engineered projects

• Global export experience — serving marine, offshore, heavy industry, and defense customers across North America, Europe, the Middle East, Southeast Asia, and Africa
